VERTICAL

The world’s largest outdoor TV

144"
201"

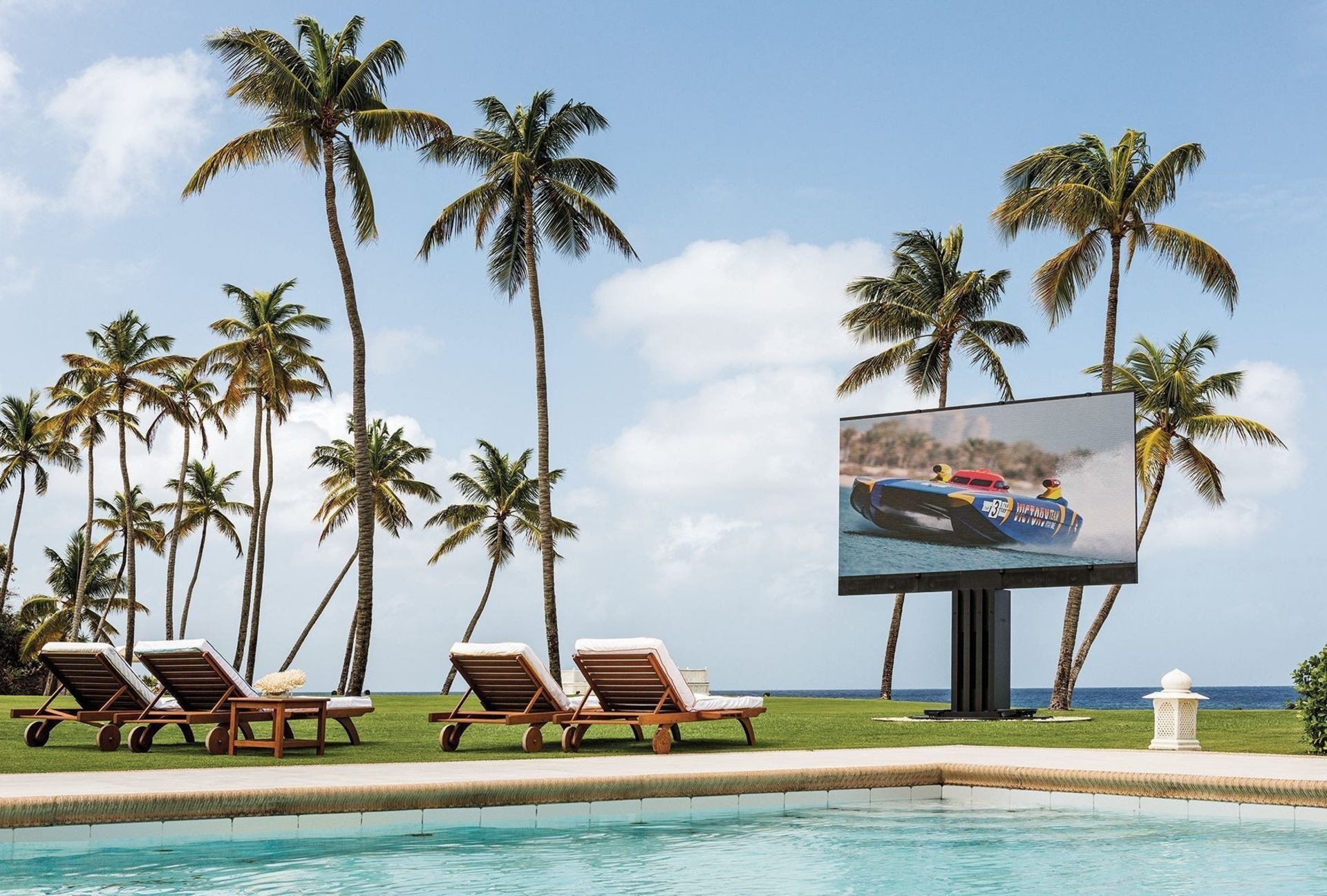

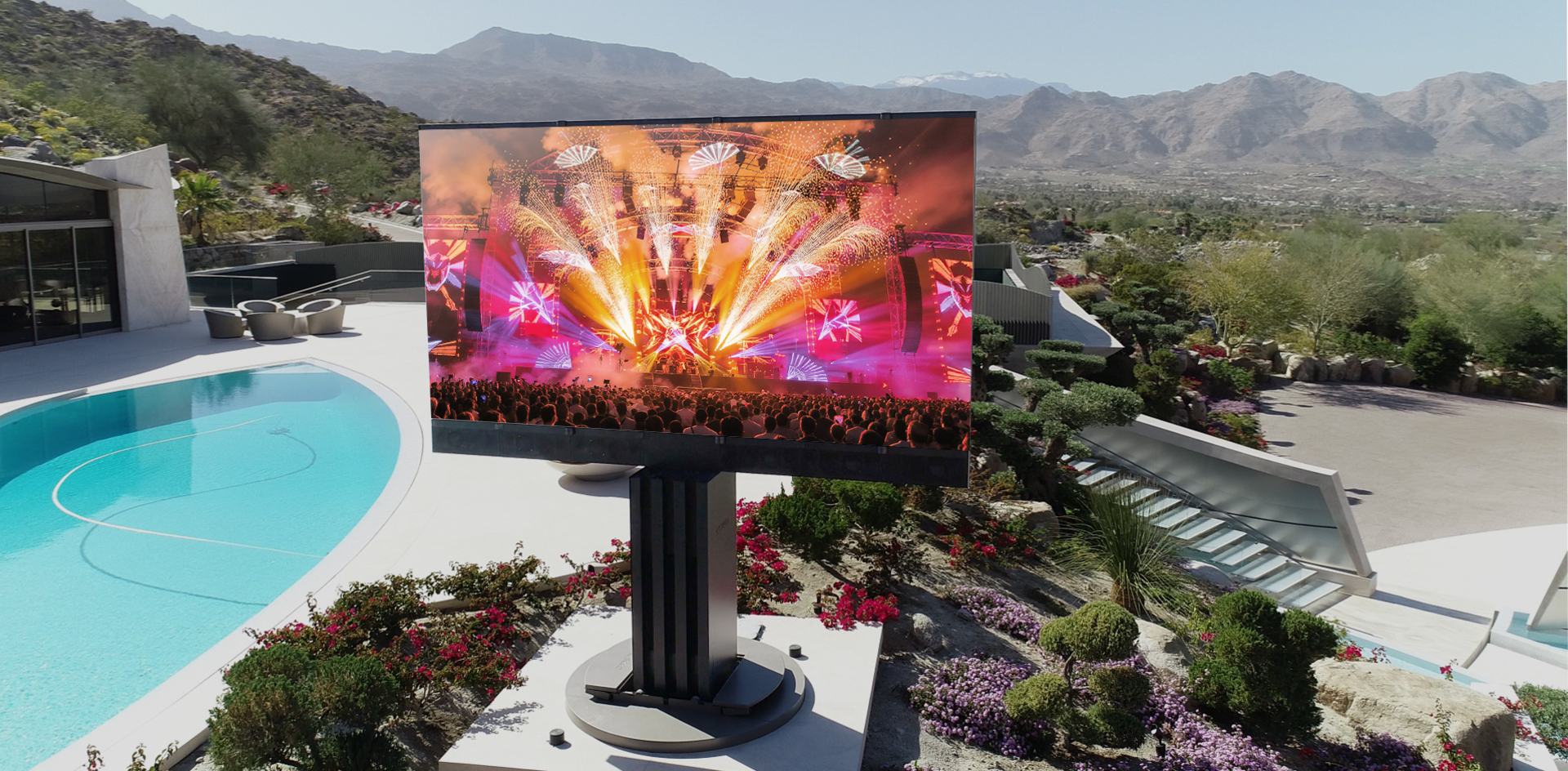

The C SEED Vertical TV is where our story first unfolded; the original masterpiece that reimagined what outdoor entertainment could become. Conceived with Porsche Design Studio, it established a new architectural typology: a television that lives underground, protects the purity of the landscape, and rises like a sculptural monolith only when needed. More than a display, it is a transformative architectural gesture,  preserving design freedom while introducing a new dimension of cinematic outdoor experience.

A Choreography of Motion

At the touch of a button, the Vertical ascends to its full height in a seamless 15-second rise, a 4.65-meter column emerging with quiet authority. Seven MicroLED panels unfold in a perfectly synchronized movement, locking into a single, uninterrupted plane. Once revealed, the screen rotates up to 135 degrees to align with terraces, pools, and lounge areas — adapting to the flow of outdoor life and enhancing sightlines in ways that resonate deeply with architectural intent.

Daylight Performance, Engineered for Open Skies

The Vertical was designed to excel where ordinary displays fail: in full sun, reflective surfaces, and open-air environments. With over 2.9 million MicroLEDs generating 64 billion colors, a high refresh rate, and a brilliant 4,000-nit output, the display renders cinematic clarity even under direct midday light. The result is a visual experience that merges technology with nature — a living canvas of color and contrast that architects can integrate into landscapes, courtyards, and contemporary estates without compromise.

Despite its monumental scale, the C SEED Vertical disappears with the same quiet elegance with which it reveals itself. With a single touch, the structure descends into its engineered subterranean chamber, returning the landscape to its pure, uninterrupted geometry. A high-fidelity outdoor audio system — featuring weatherproof coaxial speakers and a dedicated subwoofer — completes the sensory experience. The Vertical 201" and 144" stand as a defining synthesis of engineering, movement, and design artistry — the origin of our legacy in reshaping outdoor environments through cinematic innovation.

Explore the VERTICAL 201 & 144 TV

Book a meeting in one of our international showrooms, or schedule a virtual presentation.

TECHNICAL DATA
& drawings

Tv System
201
144
Brightness
nits
4.000
Pixel pitch
1.90
1.60
Processing Depth
bit
16 per color
Color Spectrum
Colors
64 billion
Refresh Rate
Hz
3.840
Lifespan
h
100,000
Contrast Ratio
7,000:1
Colour Temperature
K
6,500-10,000
Viewing Angle- Horizontal
degrees
160
Viewing Angle- Vertical
degrees
140
Number of MicroLEDs
2,963,520
2,200,000
Operating Temperature Range
°C
-20 to +45
Broadband speaker frequency range
40 Hz - 22 kHz
Subwoofer frequency range
24 Hz - 200 Hz
Broadband speaker peak out
Watt
6 x 250
2 x 250
Subwoofer peak out
Watt
1 x 700
Physical Dimensions TV
LED TV Size (diagonal)
inch/mm
201 / 5.105
144 / 3.658
LED TV Size (Width)
inch/mm
176.4 / 4.480
126 / 3.200
LED TV Size (Height)
inch/mm
94.5 / 2.400
69 / 1.760
Standard LED Screen (Depth)
inch/mm
4.3 / 110
3.9 / 100
LED TV Area
sq.ft./m²
116 / 10,8
60,3 / 5,6
TV Rotation Angle
degrees
+/- 135
LED TV Weight
kg
1.350
600
Input / Output
Video Input
1 x HDMI, HDCP 2.2 support / *Does not include inbuilt or separate TV tuner.
Serial in/output
2 x USB, 1 x RS232
Audio Output
pre-amp, 11.2, independent sub
Network Connection
1 x RJ45
OPERATION
Power Supply LED Screen
Standard
3 x 400V+N+PE/32A/50-60Hz
High-Leg-Delta
3 x 240V+PE/60A/50-60Hz
Single-Phase / Split-Phase
240V/120V+PE/110A/50-60Hz
Input power LED max | typical
W/m²
880 I 230
Power consumption max | typical
kW
19 I 5,7
14 I 3,5
EQUIPMENT
Remote control
Yes
Shaft Cover
Yes
Wind Sensor
Yes
Elevating Device
Yes
Multi Media Server
Yes
